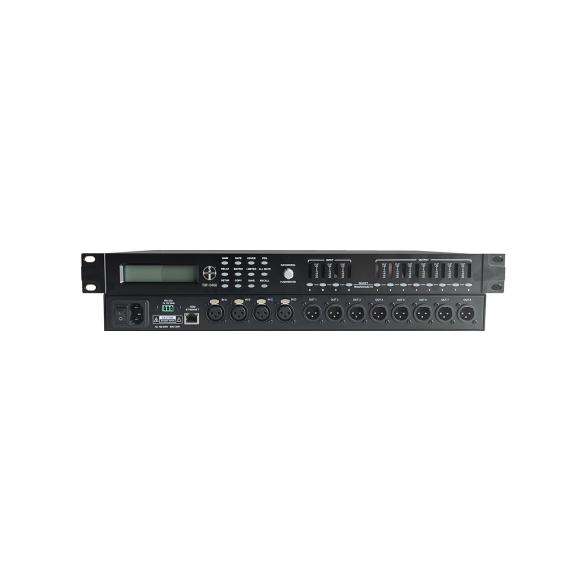

TOP-0408

數字音頻處理器

型號：TOP-0408

功能特點：

1、4路輸入8路輸出，可靈活組合多種分頻模式，高、低通分頻點均可達20Hz～20KHz；
2、輸入：4路平衡式線路輸入，采用標準卡儂接口，平衡接法。

3、輸出：8路平衡式線路輸出，采用標準卡儂接口，平衡接法。

4、DSP芯片處理，48kHz采樣率。

5、可存儲32個系統預設。

6、輸出通道的軟壓縮閥值、比率、啟動時間、恢復時間連續可調。
7、任意通道之間參數設置可以自由復制，以及任意通道可以進行連動調節。

8、內置測試信號發生器，輸出方式可選粉紅噪聲，白噪聲及20Hz-20kHz正弦波可調，信號幅度可調。
9、前面板帶有輸入輸出電平指示燈。

10、輸入、輸出有16段參量均衡器，增益控制、噪聲門功能、RMS壓限、內置的粉紅/白噪聲發生器，以及可調的延時。分頻器的斜率從-6dB/Oct到-48dB/Oct范圍內可選。

11、可選配開通全通濾波器功能。

技術參數：

1、輸入阻抗：平衡20KΩ，非平衡10KΩ ；                                                                                                                                                                                         2、輸出阻抗：平衡100Ω，非平衡50Ω ；                                                                                                                                                                                            3、輸入共模擬制比：≥78dB(1KHz) ；                                                                                                                                                                                  4、輸出動態范圍：112dBu；                                                                                                                                                                                           5、頻率相應：20Hz-20KHz(±0.5dB)；                                                                                                                                                                                       6、信噪比：>90dB@1KHz 0dBu；                                                                                                                                                                                                                                                                                                                                                                                     7、失真度：﹤0.002% OUTPUT=0dBu/1KHz；                                                                                                                                                                             8、信道分離度：>100dB（1KHz）；                                                                                                                                                                                 9、功耗：≤45W；                                                                                                                                                                                                       10、電源:AC110V/220V  50/60Hz；                                                                                                                                                                                            11、產品尺寸（寬×深×高）:482mm×260mm×44mm；                                                                                                                                                                        12、凈重：2.2KG；
