Position : Home>Product Details>NS Nature Sound Series

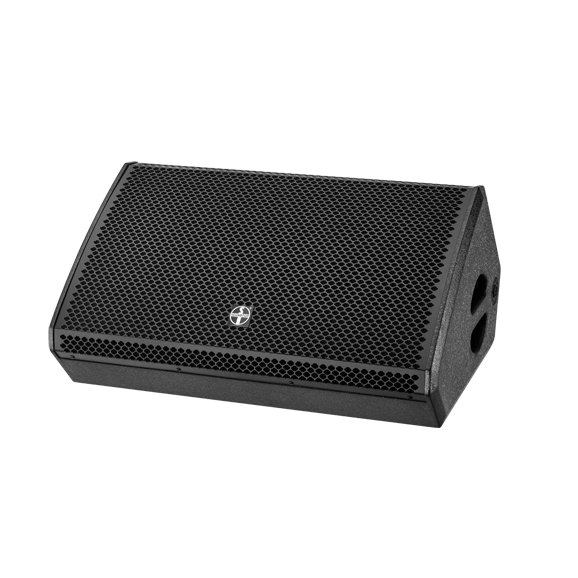

NS-115M Return speaker

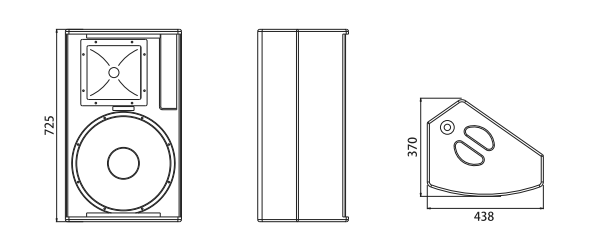

Layout：
Product features：
◎ Small and medium-sized meeting rooms, multi-function halls, churches,
and various occasions to enhance the sound.
◎ NS-115M is a 15-inch two-frequency return speaker, a two-frequency 15-inch low-bore drive unit and a 2-inch compression drive tweeter unit. The treble unit is driven by composite film compression, which has high sensitivity and long transmission distance.
Specification：
System Type: 2-way 1×15'' full-range speaker
HF Transducer: 1×1'' throat \ 1×2'' voice coil
LF Transducer: 1×15'' woofer\ 1×3'' voice coil
Frequency Response(±3dB): 50Hz-17KHz
Coverage Angle (HXV): 80°x60°
Sensitivity (1W @ 1m): 101dB
SPL: continuous: 129dB, peak: 135dB
Nominal Impedance: 8Ω
Rated Power: 500W (RMS),1000W(PEAK)
Enclosure Material: 15mm birch plywood
Grille: molded hexagonal grill
Connectors: 2× NL4SPEAKON
Connection: 1+,1-
Dimensions (WxHxD): 438x725x370mm
Packaging dimensions: 583x822x434mm
Net Weight: 24KG
-
